Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MLED
  • Model Number: P12
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 12mm
  • Screen Dimension: Customized Size
  • Product name: Iron fixed cabinet outdoor advertising digital display screens
  • LED chip: Epistar
  • LED driver: MBI5024
  • LED cabinet: Steel nice cabinet
  • LED controller system: No working off always
  • LED quality: best led chip and best after service
  • Certificate: CE RoHS UL Certifications
  • Application: Outdoor Advertising Led
  • Warranty: 2years
  • Brightness: 8000nits

Packaging & Delivery

Packaging Details Poly wooden case or air flight case
Delivery Time Shipped in 20 days after payment

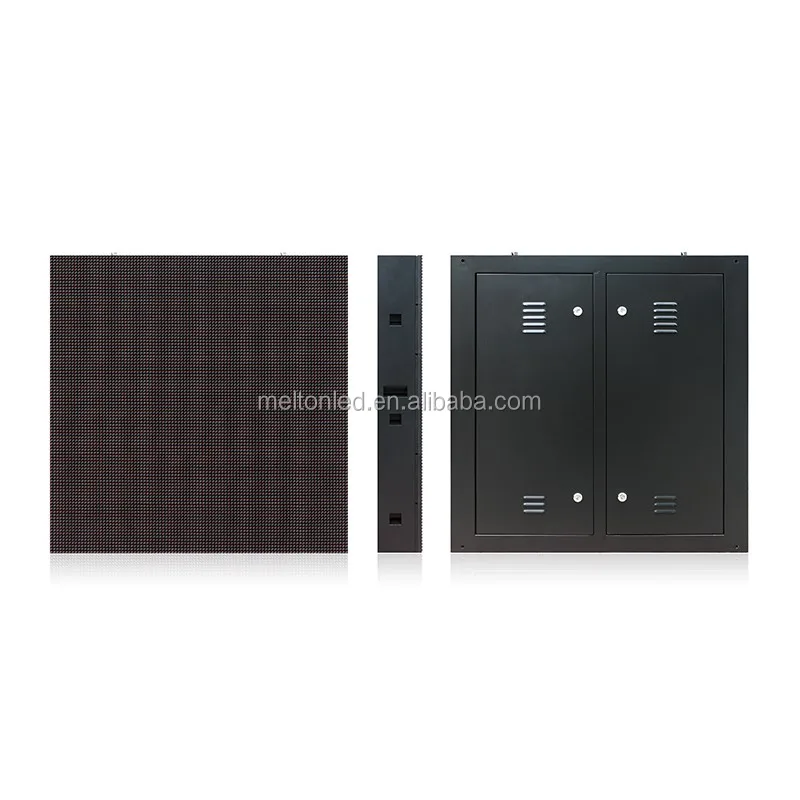

Iron fixed cabinet outdoor advertising digital display screens

Product Description

1, Outdoor advertise led screen

2,High refreashing rate can be 2000-4000HZ, good color balance

3,Our company specailly design ,fastly to connecting each cabinet and slim light cabnet

4,Big View angle 150Degrade

5,Best mask consistance,

6,Lift time service always, No worry on afterservice



Module paramter;

Unit ModuleItemParameter
Model NumberP12-4S
Module size192mm*192mm
Pixel pitch12mm
Pixels Density6904dots/sqm
Pixel configuration1R1G1B
LED    Package modeDIP346
Pixel resolution16dots(W)*16dots(H)
Max Power25W
Module thickness28mm
Weight0.85kg
Drive typeConstant drive
Scan mode1/4can
Port typeHUB75
Brightness of white balance≥6500cd/sqm
LEDDimension960mm*960mm
CabinetMonomer Module Number36
Power supply5V/40A*4 pcs
Thermal dischargefan 2pcs
Pixel per cabinet960mm*960mm
Best viewing distance10M~50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃~+85℃
working:-20℃~+50℃
Relative humidity10%-95%
Thickness160mm
PowerWorking voltageAC220V±10%
Average Power consumption195W/sqm
Max.Power consumption≤487W/sqm
Current≤20mA(single LED)
Control systemCPUPentium4 or above P4
Operation systemWIN98/2000/NT/XP/WIN7
Control methodSynchronization
Main technicalDriving deviceConstant drive IC
Refresh frequency≥800HZ
Grey scale/colors4096 16.7M
4096gray level/16.7M colors
MTBF≥9000hours
Power switchAutomatic switch
Display Mode≥800*600/1024*768
Packaging & Shipping



Our Services



1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.We can provide mature customised solution for you.
Company Information



FAQ





1, how to arrange payment

Our payment terms in usually is T/T payment, For sample and small order, Western Union paypal or Moneygram also be acceptable



2, What is our warranty

Our warranty from 5 year to 1 years basis on different type led screen, In usually every screen we will ready more extra led screen modules as spare modules, if some modules happen fails, you can replace the fail modules by our spare modules, When all the spare modules use out, You can send back these modules to us for repair, and we will send to you after repair and testing&aging well



3,How to be our distributor

To be our distributor, We can share our profit together with you in every year, Also we can send our engineer or sales to your company to support your business, also for led screen after-service, We will together with you to the after-service in the whole led screen life time



4,How to maintence led screen

In usually every year to maintence led screen one time, Clear the led mask, checking the cables connection, if any led screen modules fail, You can replace it with our spare modules



5, How to select Outdoor advertise led screen

For outdoor fixed installation  P6 P8 P10, P12 P16 P20 is the perfect selection
